SQYFlex

Better, Safer, and More Efficient Working Environment with SQYFlex

At BMS, we now offer SQYFlex, a solution that ensures technicians a dry, safe, and efficient working environment – even in cold and humid conditions. The system is modular, automatically adjusts its shape to different blade types, and extends the working season with integrated humidity control and IR heating. This makes the installation, maintenance, and inspection of wind turbine blades both faster and more reliable.

Are you interested in our SQYFlex solutions? Contact Poul-Erik Bach-Andersen at +45 9632 1051 or pan@bms.dk for more informatio

SQYFlex Highlighted Features

Flexible Sealing System
Better, safer and more efficient working environment with SQYFlex

Flexible Work Chamber System
Adapts the shape of the blade to secure work in wet conditions.

Climate Control
Modular Chambers with humidity control and IR heaters extend the season.

Flexible Shape
The platform is flexible and adjusts its shape with electrical actuators to accommodating most blade types.

Various Flexible Shape Options

Safety components & functions

Emergency stop
Activation stops all electrical powered movement of platform

Inclinometer
Notifies the operator when platforms tilt angle exceeds 4 degrees

Hoist overload
Activates when payload requirement is exceeded

Limit switch
Activates when maximum height/wire angle is reached

Fall arrest device
Activates in case of a failure on primary wire rope

PP anchor point
Use for fall protection and emergency decent

CF load detection
Activates when load on CF hoist is below 125kg.

Operating Conditions
Outdoor temperatures down to -25 degrees, max wind speed 14 m/s - must not be used during lightning/thunderstorms.

SQYFlex Specifications

On-site assembly time:

10 minutes

Payload capacity:

550 kg

Blade accessibility:

360 degrees with quick mobilization

Maximum operational wind speed:

14 m/s

Root diameter:

3.2 m

Maximum chord dimensions:

4.5 m x 2 m

Transport dimensions:

L: 6.40 m, H: 3.90 m, W: 2.45 m

Total weight (incl. trailer):

3,500 kg

Suspension points

Equipped with 3 suspension points

Built-in LED work lighting

Built-in LED work lighting

System for crew changes

System for crew changes

Certifications

In accordance with EN 1808 standards
Se alle spørgsmål

Enhance your safety level with SQYFlex

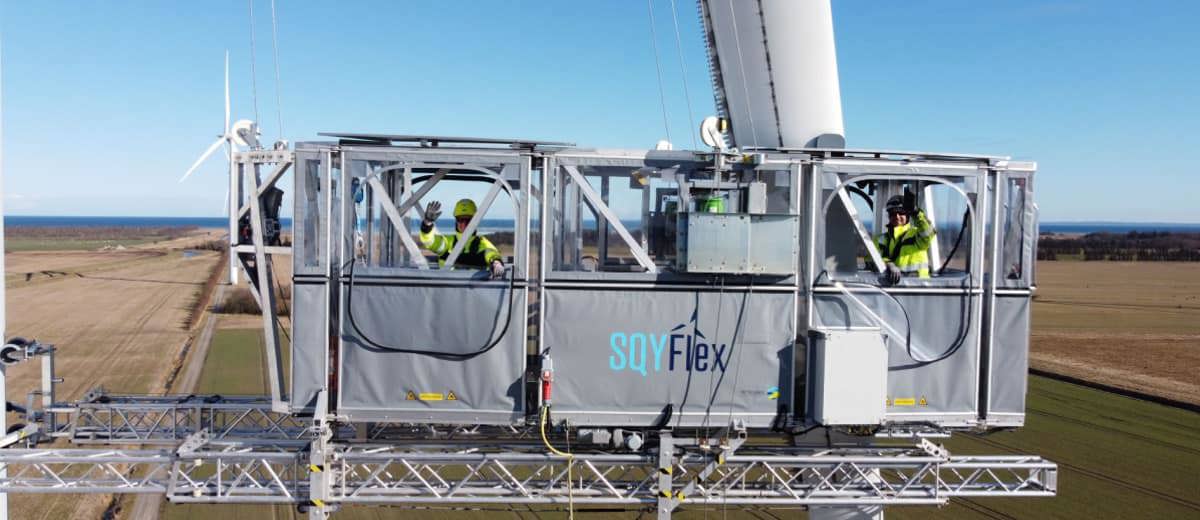

SQYFlex is an innovative platform solution that helps you work more safely and efficiently at height. Our new 360° Blade Access Platform is a universal solution that eliminates complex controls and expensive mobilization costs. The platform is designed to adapt to the blade, providing technicians with optimal work comfort.
Poul Erik Bach Andersen

Head of Department | Truck mounted lifts

+45 9632 1051 pan@bms.dk
